รายละเอียดสินค้า

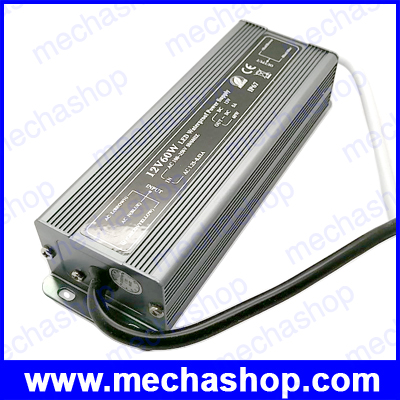

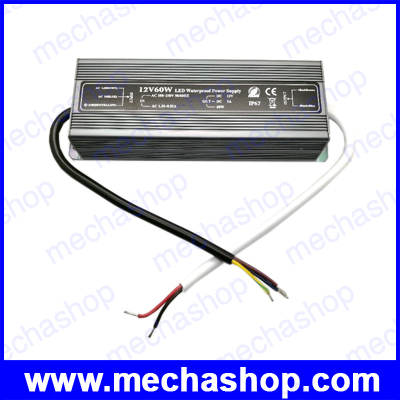

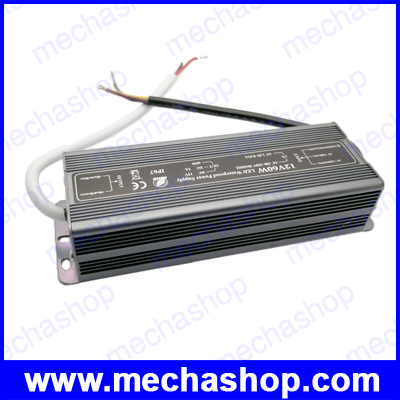

เพาเวอร์ซัพพาย แหล่งจ่ายไฟ Power Supply 12V 5A 60W Waterproof Series TAF-A1260E ประกัน 1 ปี
Feature
- 100% full-load
- Natural air cool
- IP67 Waterproof grade
- Universal input AC input,full range
- Protection: short-circuit, overload, over voltage and over heat
Output
- DC Voltage (V): 12V
- Voltage Range: +/- 5%
- Rated Current (A): 5A
- Current Range (A): 0 – 5A
- Rated Power (W): 60W
- Ripple & Noise (Mvp-p): 100mVP-P
- voltage accuracy: +/- 1%
- Start and Rise Time: 800ms,50ms full load
- Hold Time ( Typ): ≥25ms full load
- Output cables Black cable: for LED cathode , Red cable: for LED positive poles
Input
- Voltage Range (V): 110 ~ 240VAC
- AC Current (A): 1.2A/0.6A
- Frequency Range (Hz): 47 ~ 63Hz
- Power Factor (Typ): PF ≥ 0.50
- Efficiency (Typ): ≥ 83%
- Input cables: Brown cable: “L” Blue cable: “N” Yellow-green cable: ” ground”
Protection
- Overload Protection 110-150% rated output power
- Protection type: hiccup,automatic restoration after abnormity remove
- short circuit protection:
- protection when the output is short circuit
- Protection type: hiccup, automatic restoration after abnormity remove
Environment
- Working Temp: 0 ~ 50
- Working Humidity: 20 ~ 90% RH, non-condensing
- Storage Temp& Humidity: 20 ~ 85 , 10% ~95% RH
Others
- Dimensions: 170x52x32 mm (L*W*H)
- Weight: 0.85kg
Remark
- Unless otherwise specified,all data are take under 230VAC input,rated load and environment temp25
- Ripple & Noise : measured with a 12″ twisted pair cable, terminals in parallel with a 0.1uF and a 47uF capacitor,and on 20MHz bandwidth
รับประกันสินค้า 1 ปี
