รายละเอียดสินค้า

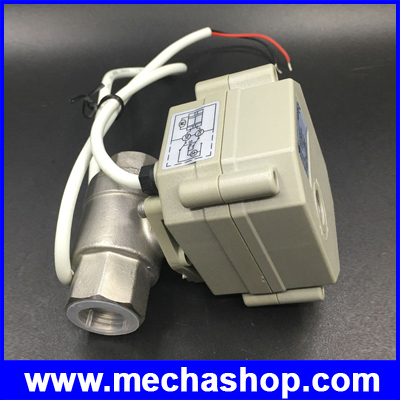

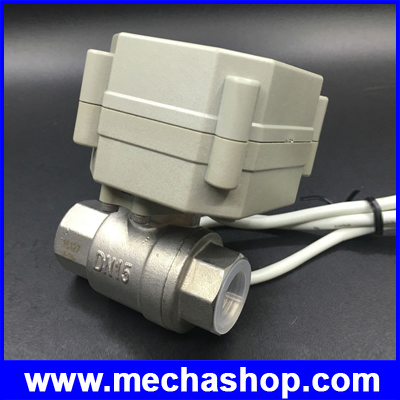

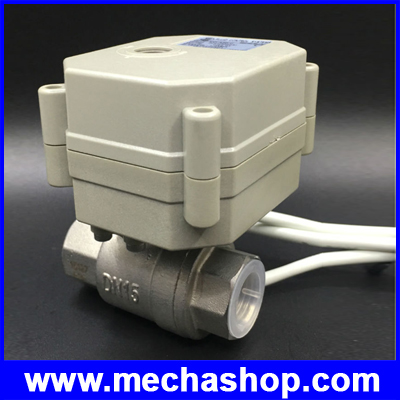

มอเตอร์วาล์วไฟฟ้า สแตนเลส ขนาด 1/2นิ้ว DN15 Electric Motorized Valve Stainless Steel 9-24V (จ่ายไฟเปิด ดับไฟปิด) 2สาย

>> แจ้งความต้องการสินค้า <<



รายละเอียดสินค้า

• Product Model: TFA20-0-C

• Product size: BSP 1/2″, DN15

• Valve Body Material: Stainless Steel

• Working Voltage: DC 9-24V

• Open/close Time: 5-10 Sec

• Wiring Control Methods: CR202

• Maximum Working Pressure: 1.0MPa

• Circulation Medium: Fluid, Air

• Working Current: ≤80MA (500 mA shown on the lable means the minimum current of external power)

• Life time: 100,000 times

• Actuator Material: Engineering Plastics

• Sealing Material: EPDM

• Actuator Rotation: 90°

• Max. Torque Force: 2 N.M

• Cable Length: 0.5m

• Environment Temperature: -15°~50°

• Liquid Temperature: 1°~95°

• Manual Override: None

• Indicator: Yes

• Protection Class: IP67

Applications:

• HVAC
• Fan coil
• Central Air conditional System
• Water Heter
• solor Water heating
• Water treatment
• water automatic control Equipment
• Replacing solenoid valve,particularly when solenoid cannot work reliably



How about the quality control of TF brand motorized ball valve?

1. Actuator housing use high quality engineering plastic for prevent aging and UV;

2. Metal gear system can guarantee the valve operation steady and long life working;

3. 200 times electronic performance testing before sending out, each valve should open/closed 200 times by power in this testing;

4. Type ID number to each batch valves;

5. The protection class is also IP67, all actuators are fully sealed to IP67 specifications to prevent water ingress;

6. Floating seal structure, no leak, suitable for heavy dirt or long time working. No leaking, high protection class, NEMA 6 equivalent;

7. Most of other supplier offer reduce port only. TF series motorized valve features a full port ball valve, the valve do not lose any water flow or pressure on the working.

8. Offer NPT thread valve for America and Canada market, and offer BSP thread valve for other country.

9. Different wiring control methods for option which include 2/3/5 wires control, normal open/closed, signal feedback etc.

10. Acquired CE certification and ISO certification.




รับประกันสินค้า 3 เดือน
