ชุดปรับมุมเอียงตามแสงอาทิตย์ Solar Tracking system 1000W Solar Tracker 1แกน Linear Actuator 12V 200mm.+Electronic Controller +Wind Speed Sensor (สินค้า Pre-Order)
>> แจ้งความต้องการสินค้า <<

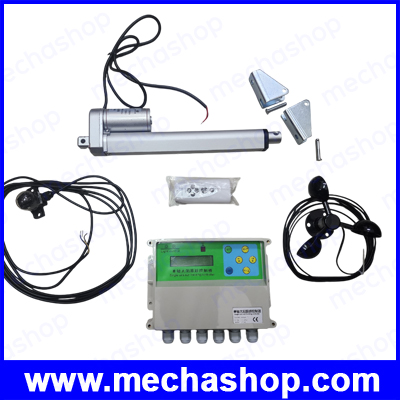

Here for sale is Complete Single Axis Solar Tracker Kits, items Include a 200mm/ 8″ Stroke Linear Actuators &2PCS Mounting Brackets and the Electronic Controller And the Wind Speed Sensor you need for a single axis solar tracker. Build your own frame and you will get a professional grade single axis solar tracker!
Solar tracking ระบบติดตามแสงอาทิตย์
About the East-West Linear Actuator With Mounting Brackets
About the Solar Tracking Controller
- Tracking accuracy is high, average tracking accuracy is ≤1°(The actual accuracy is relevant with the system’s moving speed);
- The light-sensor is inside the waterproof shell, which is waterproof, dustproof and resistant to ageing;
- The interval time of continuous tracking is adjustable;
- The threshold value of the light-sensor is adjustable;
- The threshold value of the wind speed sensor is adjustable;
- With working status indicator light, can indicate multiple working status: East-West orientation working status, manual status,
- wind speed action status, sunny status, cloudy status, execute to scheduled homing status in cloudy day, self-lock status at night;
- Can execute to scheduled homing position in cloudy day or at night;

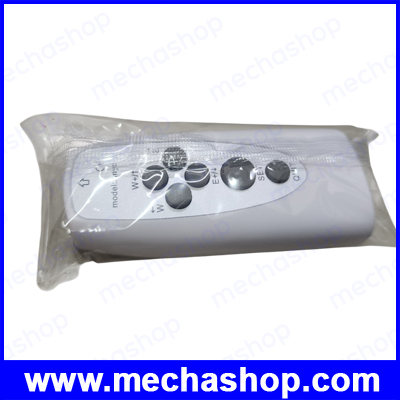

- With IR remote control to manually control the East-West orientation;
- Users can add external limit switch as needed;
- Users can add wind speed sensor as needed;
- Can move to scheduled position when there is wind (Needs to add wind speed sensor);
- East-West orientation limiting (Needs to add limit switch);
- Wrong battery pole connection protection, with over-current protection fuse;
- Low standby power, standby current is <10mA.
- Easy-installation.
- Single axis tracker provides up to 35% more power production
- Engineered to hold up to 1000 Watts of solar panels
- Waterproof with IP65
- Small self –consumption.
Always disconnect the Solar Tracker electronics from its power supply before approaching the solar tracker.

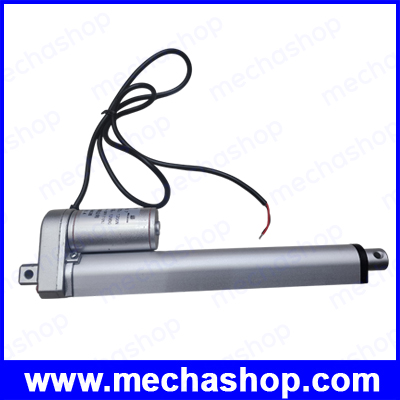

- 1x 200mm 8″ Stroke DC 12V 5.7mm/s Speed Linear Actuator.

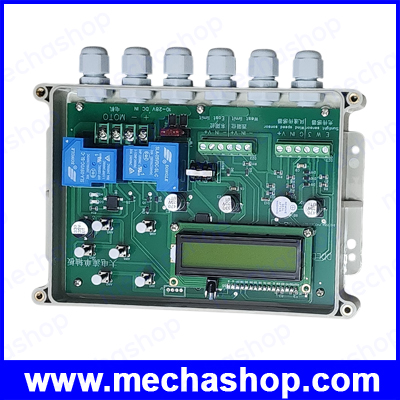

- 1x Solar Tracking Controller+Light Sensor+IR Remote.

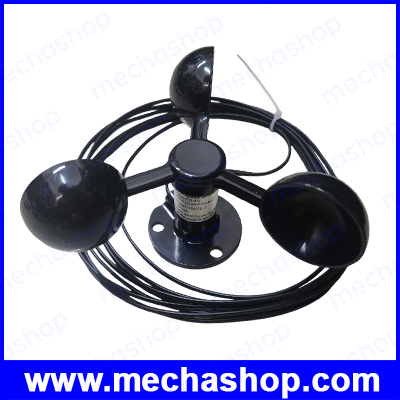

- 1x Wind Speed Sensor +2Meters Cable.
- 2x Silver Mounting Brackets for the linear actuator.
รับประกันสินค้า 3 เดือน
